Description

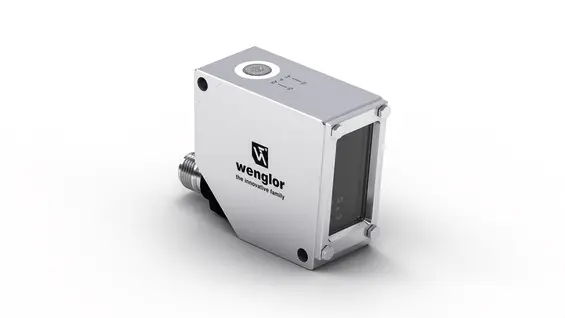

Laser Distance Sensor
Features at a Glance
- 2 mutually independent switching outputs
- Robust stainless steel housing with IP69K
- Wide working range and precise detection thanks to DS technology
- Interchangeable optical lens
Optical Data |
|
|---|---|
| Working Range | 0 … 10,000 mm |
| Setting Range | 50 … 10,000 mm |
| Reproducibility maximum | 3 mm* |
| Linearity Deviation | 10 mm* |
| Switching Hysteresis | < 15 mm |
| Light Source | Laser (red) |
| Wavelength | 660 nm |
| Service Life (T = +25 °C) | 100,000 h |
| Laser Class (EN 60825-1) | 1 |
| Beam Divergence | < 2 mrad |
| Max. Ambient Light | 100,000 Lux |
| Light Spot Diameter | see Table 1 |
