Description

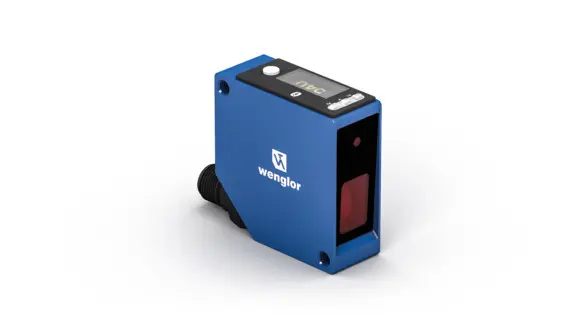

Laser Distance Sensor Triangulation
- Wireless settings via Bluetooth
- Graphical display for easy operation
- Measured value independent of material, color and brightness
- Rugged aluminium housing
- Analog output 0…10 V
Optical Data |
|
|---|---|
| Working Range | 40 … 240 mm |
| Setting Range | 40 … 240 mm |
| Reproducibility maximum | 70 µm |
| Reproducibility: 1 Sigma | 6 µm |
| Linearity Deviation | 200 µm |
| Light Source | Laser (red) |
| Wavelength | 655 nm |
| Service Life (T = +25 °C) | 100,000 h |
| Laser Class (EN 60825-1) | 1 |
| Max. Ambient Light | 20,000 Lux |
| Light Spot Diameter | see Table 1 |
