Description

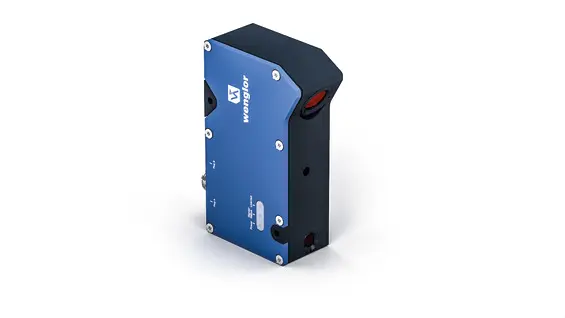

Laser Distance Sensor Triangulation
Features at a Glance
- Highly precise measurement with a maximum linearity deviation of 0.05%
- Constant, surface-independent measured values
- Thermally stable measured values without any warm-up phase
- Industry 4.0 compatible thanks to Industrial Ethernet
Optical Data |
|
|---|---|
| Working Range | 90 … 190 mm |
| Measuring Range | 100 mm |
| Reproducibility maximum | 30 µm |
| Reproducibility: 1 Sigma | 3 µm |
| Linearity Deviation | 50 µm |
| Light Source | Laser (red) |
| Wavelength | 658 nm |
| Service Life (T = +25 °C) | 100,000 h |
| Laser Class (EN 60825-1) | 2 |
| Max. Ambient Light | 10,000 Lux |
| Light Spot Diameter | < 0.75 mm |
