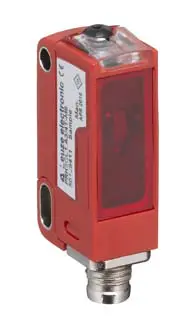

Polarized retro-reflective photoelectric sensor
| Series | 3C |
| Operating principle | Reflection principle |
| Special version | Autocollimation Teach input |
| Operating range | 0 … 4 m, With reflector TK(S) 100×100 |
| Operating range limit | 0 … 5 m, With reflector TK(S) 100×100 |
| Light source | LED, Red |
| Protective circuit | Polarity reversal protection Short circuit protected |
| Supply voltage UB | 10 … 30 V, DC, Incl. residual ripple |
| Residual ripple | 0 … 15 %, From UB |
| Open-circuit current | 0 … 15 mA |
Polarized retro-reflective photoelectric sensor Series 5B Operating principle Reflection principle Optical data Operating range 0.02 … 5 m, With reflector TK(S) 100×100 Operating range limit 0.02 … 6.5 m, With reflector TK(S) 100×100 Light source LED, Red Electrical data Protective circuit Polarity reversal protection Short circuit protected Performance data Supply voltage UB 10 … 30 V, DC, Incl. residual ripple … Continue reading PRK5B/PX-M8 →
Add to cart
Polarized retro-reflective photoelectric sensor Series 5B Operating principle Reflection principle Application Detection of stretch-wrapped objects Optical data Operating range 0.04 … 4 m, With reflector TK(S) 100×100 Operating range limit 0.03 … 5 m, With reflector TK(S) 100×100 Light source LED, Red Electrical data Protective circuit Polarity reversal protection Short circuit protected Performance data Supply voltage UB 10 … Continue reading PRK5B.D/PX-200-M12 →
Add to cart
Polarized retro-reflective photoelectric sensor Series 5B Operating principle Reflection principle Optical data Operating range 0.02 … 5 m, With reflector TK(S) 100×100 Operating range limit 0.02 … 6.5 m, With reflector TK(S) 100×100 Light source LED, Red Electrical data Protective circuit Polarity reversal protection Short circuit protected Performance data Supply voltage UB 10 … 30 V, DC, Incl. residual ripple … Continue reading PRK5B/4X-600-M8 →
Add to cart
Diffuse sensor with background suppression Series 3C Operating principle Diffuse reflection principle with background suppression Application Detection of highly transparent bottles Detection of objects with openings Detection of transparent films Special version Special version Extra long light spot (XL) V-optics Optical data Black-white error < 20% up to 80 mm Operating range, white 90% 0.01 … Continue reading HT3C.BVXL/4P-M8 →
Add to cart
