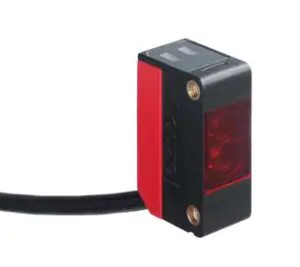

Polarized retro-reflective photoelectric sensor
| Series | 5B |
| Operating principle | Reflection principle |
| Operating range | 0.02 … 5 m, With reflector TK(S) 100×100 |
| Operating range limit | 0.02 … 6.5 m, With reflector TK(S) 100×100 |
| Light source | LED, Red |
| Protective circuit | Polarity reversal protection Short circuit protected |
| Supply voltage UB | 10 … 30 V, DC, Incl. residual ripple |
| Residual ripple | 0 … 15 %, From UB |
| Open-circuit current | 0 … 20 mA |
Diffuse sensor with background suppression Series 3C Operating principle Diffuse reflection principle with background suppression Application Detection of highly transparent bottles Detection of objects with openings Detection of transparent films Special version Special version Extra long light spot (XL) V-optics Optical data Black-white error < 20% up to 80 mm Operating range, white 90% 0.01 … Continue reading HT3C.BVXL/4P-M8 →
Add to cart
Diffuse sensor with background suppression Series 3C Operating principle Diffuse reflection principle with background suppression Special version Special version Suppression of HF illumination (LED) Optical data Black-white error < 10% up to 250 mm Operating range, white 90% 0.005 … 0.6 m Operating range, gray 18% 0.01 … 0.5 m Operating range, black 6% 0.015 … Continue reading HT3CI.HF/4X-M8 →
Add to cart
Polarized retro-reflective photoelectric sensor Series 5B Operating principle Reflection principle Application Detection of bottle container Detection of semi-transparent media Detection of transparent films Optical data Operating range 0.03 … 4.5 m, With reflector TK(S) 100×100 Operating range limit 0.03 … 6 m, With reflector TK(S) 100×100 Light source LED, Red Electrical data Protective circuit Polarity reversal protection Short … Continue reading PRK5B.M1/2X-M8 →
Add to cartPolarized retro-reflective photoelectric sensor Series 5B Operating principle Reflection principle Optical data Operating range 0.02 … 5 m, With reflector TK(S) 100×100 Operating range limit 0.02 … 6.5 m, With reflector TK(S) 100×100 Light source LED, Red Electrical data Protective circuit Polarity reversal protection Short circuit protected Performance data Supply voltage UB 10 … 30 V, DC, Incl. residual ripple … Continue reading PRK5B/PX-M8 →
Add to cart
