Description

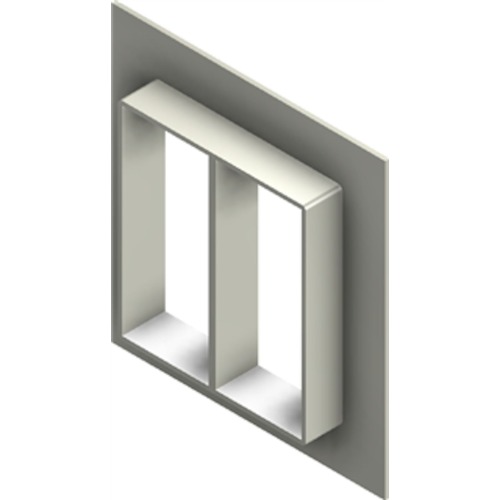

The Roxtec G frame is a metal frame with flange available with a single opening or in combinations with several openings in width and/or height.

To be used with corresponding Roxtec components to form a complete sealing solution
Attachment by casting or welding
Casting mold accessory available
GE extension frame accessory available

Specifications

Component family Roxtec G frame
Material/group Primed mild steel
Frame openings
2
Packing space (in)
4.724 x 9.449
External dimensions WxHxD (in)
15.079 x 16.142 x 2.362
Aperture dimensions WxH (in)
12.52(+0.591/-0.591) x 13.78(+0.591/-0.591)
Weight (lbs)
18.23
Art. No G008000000212
