Description

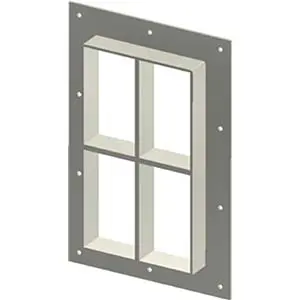

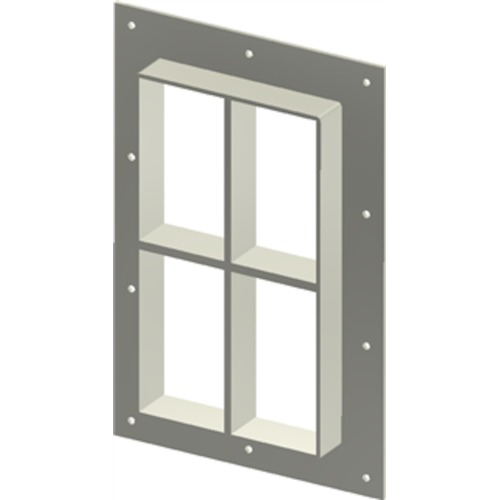

The Roxtec GH frame with pre-drilled holes and standard sized flange is bolted to even structures. It makes it possible to maximize the amount of cables/pipes while minimizing the penetration footprint. The rectangular steel frame can be used with a GE extension frame in galvanized steel to cover the depth of a thick wall/floor.

To be used with corresponding Roxtec components to form a complete sealing solution
Attachment by bolting to steel or sandwich walls

Specifications

Component family Roxtec GH frame
Material/group Galvanized mild steel
Frame openings
4
Packing space (in)
4.724 x 7.087
External dimensions WxHxD (in)
15.079 x 22.835 x 2.362
Aperture dimensions WxH (in)
10.945(+0.197/-0.197) x 18.701(+0.197/-0.197)
Weight (lbs)
26.46
Art. No 5GH0000008104
