Description

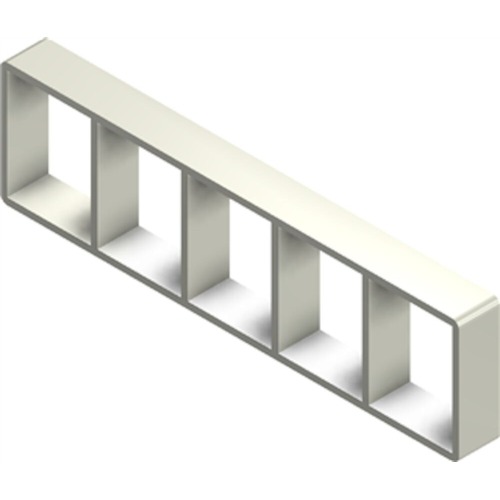

The Roxtec S frame is a metal frame for welding into precise apertures. It is available in different materials and with a single opening, or in combinations with several openings in width and/or height.

To be used with corresponding Roxtec components to form a complete sealing solution
Attachment by welding
SE PPS accessory available for plastic pipe seals

Specifications

Component family Roxtec S frame
Material/group Primed mild steel
Frame openings
5
Packing space (in)
4.724 x 4.724
External dimensions WxHxD (in)
26.083 x 7.067 x 2.362
Aperture dimensions WxH (in)
26.181(+0.039/-0.039) x 7.165(+0.039/-0.039)
Weight (lbs)
22.71
Art. No S004000000512
