$70.70

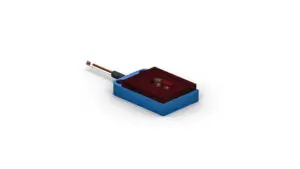

Through-Beam Sensor
Features at a Glance
Optical Data |
|
|---|---|
| Range | 1,000 mm |
| Light Source | Infrared Light |
| Service Life (T = +25 °C) | 100,000 h |
| Opening Angle | 25 ° |
Electrical Data |
|
|---|---|
| Sensor Type | Emitter |
| Supply Voltage | 10 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 30 mA |
| Temperature Drift | < 10 % |
| Temperature Range | -25 … 60 °C |
| Reverse Polarity Protection | yes |
| Test input | PNP |
| Protection Class | III |
Laser Distance Sensor Features at a Glance Secure detection of black objects also in extremely inclined positions with wintec Industrial Ethernet Reliable in case of glossy objects with wintec Web server and graphic display for simple operation Optical Data Working Range 0.1 … 10.1 m Reproducibility maximum 7 mm Linearity Deviation 20 mm Light Source Laser (red) Wavelength 660 nm Service … Continue reading OY2TA104P0150P →
Add to cart
Laser Distance Sensor Triangulation Features at a Glance Measured value independent of material, color and brightness Analog output: 4…20 mA Graphical display for easy operation Wireless settings via Bluetooth Rugged aluminium housing Optical Data Working Range 30 … 80 mm Setting Range 30 … 80 mm Reproducibility maximum 13 µm Reproducibility: 1 Sigma 0.8 µm Linearity Deviation 40 µm Light Source Laser (red) Wavelength 655 nm Service … Continue reading P3PC011 →
Add to cart
Laser Distance Sensor Features at a Glance Minimal switching hysteresis Switching point independent of material, color and brightness CMOS line array Highly accurate switching distance Optical Data Range 240 mm Setting Range 40 … 240 mm Switching Hysteresis < 0.5 % Light Source Laser (red) Wavelength 655 nm Service Life (T = +25 °C) 100,000 h Laser Class (EN 60825-1) 2 Max. Ambient Light 10,000 Lux Light … Continue reading CP25QXVT80 →
Add to cart
Laser Distance Sensor Triangulation Features at a Glance Highly precise measurement with a maximum linearity deviation of 0.05% Constant, surface-independent measured values Thermally stable measured values without any warm-up phase Industry 4.0 compatible thanks to Industrial Ethernet Optical Data Working Range 200 … 1,000 mm Measuring Range 800 mm Reproducibility maximum 100 µm Reproducibility: 1 Sigma 15 µm Linearity Deviation 375 µm Light … Continue reading PNBC108 →
Add to cart
