Description

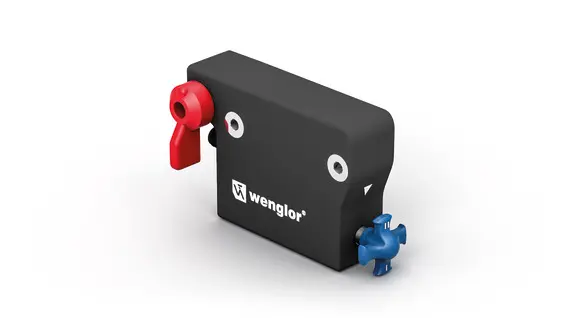

Guard Locking Device
Features at a Glance
- Escape release
- Performance Level: Cat. 4 PL e
- Power to unlock principle
- Continuously monitored locking force of 1150 N
Electrical Data |
|
|---|---|
| Sensor Type | Locking unit |
| Supply Voltage | 20.4 … 26.4 V DC |
| Response Time | ≤ 100 ms |
| Risk time | ≤ 200 ms |
| Temperature Range | 0 … 60 °C |
| Storage temperature | -10 … 90 °C |
| Safety Output | OSSD |
| Number of safety outputs (OSSDs) | 2 |
| PNP Safety Output/Switching Current | 250 mA |
| Number of Signal Outputs | 1 |
| PNP signal output switching current | 50 mA |
| Short Circuit Protection | yes |
| Protection Class | III |
