$66.60

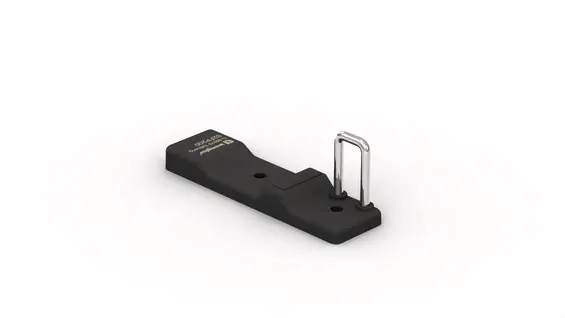

Guard Locking Device
Features at a Glance
Electrical Data |
|
|---|---|
| Sensor Type | Actuator |
| Temperature Range | 0 … 60 °C |
| Storage temperature | -10 … 90 °C |
Mechanical Data |
|
|---|---|
| Housing Material | Plastic |
| Degree of Protection | IP65/IP67/IP69 |
Safety-relevant Data |
|
|---|---|
| Operating principle | RFID |
Laser Distance Sensor Features at a Glance Minimal switching hysteresis Switching point independent of material, color and brightness CMOS line array Highly accurate switching distance Optical Data Range 240 mm Setting Range 40 … 240 mm Switching Hysteresis < 0.5 % Light Source Laser (red) Wavelength 655 nm Service Life (T = +25 °C) 100,000 h Laser Class (EN 60825-1) 1 Max. Ambient Light 10,000 Lux Light … Continue reading OCP242X0135 →
Add to cart
Laser Distance Sensor Features at a Glance 2 mutually independent switching outputs Graphical display for easy operation Switching output A1 as analog output switchable (0…10 V/4…20 mA) Temperature drift eliminable Optical Data Working Range 0.1 … 10.1 m Measuring Range 10 m Resolution 1 … 12 mm Linearity 0.5 % Linearity Deviation 50 mm Switching Hysteresis 3 … 20 mm Light Source Laser (red) Wavelength 660 nm Service … Continue reading Y1TA100QXT3 →
Add to cart
Laser Distance Sensor Features at a Glance Secure detection of black objects also in extremely inclined positions with wintec Industrial Ethernet Reliable in case of glossy objects with wintec Web server and graphic display for simple operation Optical Data Working Range 0.1 … 10.1 m Reproducibility maximum 7 mm Linearity Deviation 20 mm Light Source Laser (red) Wavelength 660 nm Service … Continue reading OY2TA104P0150P →
Add to cartLaser Distance Sensor Features at a Glance Response time: < 660 µs (speed-mode) High resolution: 8 µm (resolution-mode) Linearity: 0,1 % (resolution-mode) Zoom function Measured value independent of material, color and brightness Optical Data Working Range 30 … 80 mm Measuring Range 50 mm Resolution 8 µm Resolution (Speed-Mode) 12 µm Linearity 0.1 % Linearity (Speed-Mode) 0.2 % Linearity Deviation 50 µm Light Source Laser (red) … Continue reading CP08MHT80 →
Add to cart
