$4,806.00

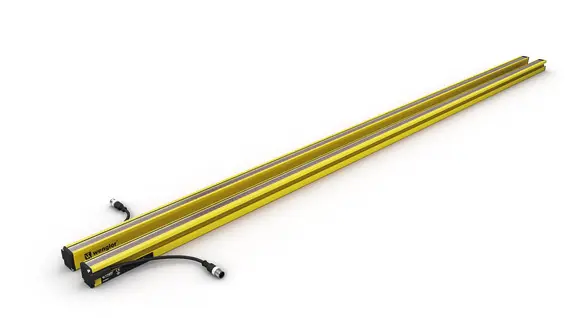

Safety Light Curtain Set
Features at a Glance
Optical Data |
|
|---|---|
| Range | 0.25 … 14 m |
| Housing Length (L) | 1,662 mm |
| Safety Field Height (SFH) | 1,687 mm |
| Resolution | 30 mm |
| Light Source | Red Light |
| Wavelength | 630 nm |
| Max. Ambient Light | 10,000 Lux |
| Opening Angle | ± 2.5 ° |
Laser Distance Sensor Features at a Glance Analog output: 4…20 mA Wide working range and precise detection thanks to DS technology No interactive influence Intuitive operating concept Optical Data Working Range 0 … 10,000 mm Setting Range 50 … 10,000 mm Reproducibility maximum 3 mm* Linearity Deviation 10 mm* Light Source Laser (red) Wavelength 660 nm Service Life (T = +25 °C) 100,000 h Laser Class (EN 60825-1) … Continue reading P1PY108 →
Add to cart
Laser Distance Sensor Features at a Glance 2 mutually independent switching outputs Wide working range and precise detection thanks to DS technology No interactive influence Built-in acceleration sensor Optical Data Working Range 0 … 10,000 mm Setting Range 50 … 10,000 mm Reproducibility maximum 3 mm* Linearity Deviation 10 mm* Switching Hysteresis < 15 mm Light Source Laser (red) Wavelength 660 nm Service Life (T = +25 … Continue reading P1PY111 →
Add to cart
Laser Distance Sensor Features at a Glance Secure detection of black objects also in extremely inclined positions with wintec No mutual interference with wintec Interference-free towards gloss in the background with wintec Reliable in case of glossy objects with wintec Optical Data Working Range 0 … 3,000 mm Setting Range 200 … 3,000 mm Switching Hysteresis < 15 mm Light Source Laser (red) … Continue reading OY2P303A0135 →
Add to cart
Laser Distance Sensor Triangulation Features at a Glance Highly precise measurement with a maximum linearity deviation of 0.05% Constant, surface-independent measured values Thermally stable measured values without any warm-up phase Industry 4.0 compatible thanks to Industrial Ethernet Optical Data Working Range 90 … 190 mm Measuring Range 100 mm Reproducibility maximum 30 µm Reproducibility: 1 Sigma 3 µm Linearity Deviation 50 µm Light … Continue reading PNBC105 →
Add to cart
