$2,570.00

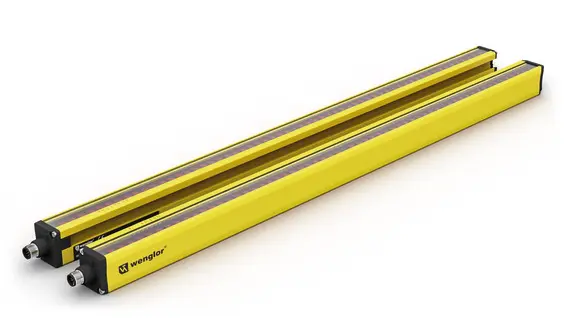

Features at a Glance
Optical Data |
|
|---|---|
| Range | 0.25 … 6 m |
| Housing Length (L) | 460 mm |
| Safety Field Height (SFH) | 460 mm |
| Resolution | 14 mm |
| Light Source | Red Light |
| Wavelength | 630 nm |
| Max. Ambient Light | 10,000 Lux |
| Opening Angle | ± 2.5 ° |
Laser Distance Sensor Features at a Glance 2 mutually independent switching outputs Wide working range and precise detection thanks to DS technology No interactive influence Built-in acceleration sensor Optical Data Working Range 0 … 10,000 mm Setting Range 50 … 10,000 mm Reproducibility maximum 3 mm* Linearity Deviation 10 mm* Switching Hysteresis < 15 mm Light Source Laser (red) Wavelength 660 nm Service Life (T = +25 … Continue reading P1PY111 →
Add to cart
Laser Distance Sensor Features at a Glance Industrial Ethernet Measured value independent of material, color and brightness Web server and graphic display for simple operation CMOS line array Optical Data Working Range 60 … 660 mm Measuring Range 600 mm Reproducibility maximum 70 … 1,000 µm Linearity Deviation 100 … 1,000 µm Light Source Laser (red) Wavelength 655 nm Service Life (T = +25 °C) 100,000 h Laser … Continue reading OCP662P0150P →
Add to cart
Laser Distance Sensor Triangulation Features at a Glance Highly precise measurement with a maximum linearity deviation of 0.05% Constant, surface-independent measured values Thermally stable measured values without any warm-up phase Industry 4.0 compatible thanks to Industrial Ethernet Optical Data Working Range 200 … 1,000 mm Measuring Range 800 mm Reproducibility maximum 100 µm Reproducibility: 1 Sigma 15 µm Linearity Deviation 375 µm Light … Continue reading PNBC108 →
Add to cart
Laser Distance Sensor Features at a Glance Minimal switching hysteresis Switching point independent of material, color and brightness CMOS line array Highly accurate switching distance Optical Data Range 240 mm Setting Range 40 … 240 mm Switching Hysteresis < 0.5 % Light Source Laser (red) Wavelength 655 nm Service Life (T = +25 °C) 100,000 h Laser Class (EN 60825-1) 1 Max. Ambient Light 10,000 Lux Light … Continue reading OCP242X0135 →
Add to cart
