Description

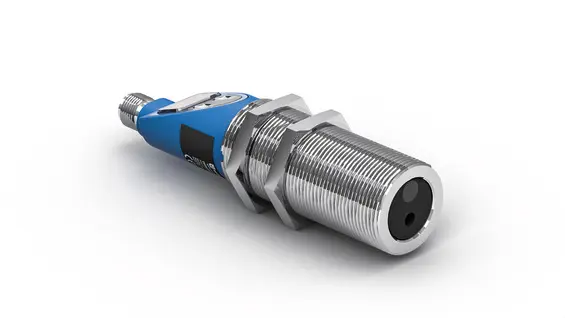

Temperature Sensor
Features at a Glance
- Analog output
- Degree of emission adjustable or teachable from 0,1…1
- Integrated laser alingment aid
- Target performance-value comparison through 2 adjustable switching outputs
Sensor-specific data |
|
|---|---|
| Temperature Measurement Range | -25 … 350 °C |
| Measuring Range | 375 °C |
| Resolution | 0.1 °C |
| Spectral Sensitivity | 8 … 14 µm |
| Linearity Deviation (-25 °C < Tobj ≤ 350 °C) | 3.4 K |
| Linearity Deviation (-20 °C < Tobj ≤ 200 °C) | 0.7 K |
| Switching Hysteresis | 1 K |
| Opening Angle | 10 ° |
| Degree of Emission | 0.1 … 1 |
| Service Life (T = +25 °C) | 100,000 h |
| Laser Class (EN 60825-1) | 1 |
