Description

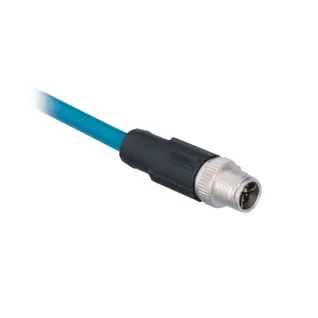

Connection Line
Features at a Glance
- PUR, straight
Electrical Data |
|
|---|---|
| Supply Voltage | ≤ 125 V AC/DC |
Mechanical Data |
|
|---|---|
| Connection 1 | Plug, straight |
| Connection mode 1 | M12 × 1, 8-pin, X-cod. |
| Connection 2 | stripped |
| Torque | M12: 0,4 Nm |
| Cable Length | 10 m |
| Outer diameter (d) | 6.7 mm |
| Wire cross-section | 0.14 mm² |
| Degree of Protection | IP67 |
| Temperature range (fixed installation) | -40 … 70 °C |
| Temperature range (moving application) | -10 … 50 °C |
| Cable Jacket Material | PUR |
| Material Wire Insulation | PE |
| Category | CAT 6A |
| Screened | yes |
| Halogen-free | yes |
| Drag Chain Suitable | no |
