Description

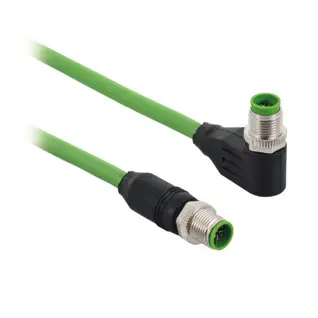

Connection Cable
Features at a Glance
- Screened
Electrical Data |
|
|---|---|
| Supply Voltage | ≤ 50 V AC/DC |
Mechanical Data |
|
|---|---|
| Connection 1 | Plug, angled |
| Connection mode 1 | M12 × 1, 8-pin, X-cod. |
| Connection 2 | Plug, straight |
| Connection mode 2 | M12 × 1, 8-pin, X-cod. |
| Torque | M12: 0,6 Nm |
| Cable Length | 5 m |
| Outer diameter (d) | 6.4 mm |
| Wire cross-section | 0.14 mm² |
| Degree of Protection | IP67 |
| Temperature range (fixed installation) | -30 … 80 °C |
| Temperature range (moving application) | -10 … 50 °C |
| Cable Jacket Material | PUR |
| Material Wire Insulation | PE |
| Material Sleeve Nut | Zinc diecasting, nickel-plated |
| Category | CAT 6A |
| Screened | yes |
| Halogen-free | yes |
| Drag Chain Suitable | no |
