Quartz Tubular Elements – Construction Styles

/Tempco/Data-Assets/07-Infrared-Images/WebR007ReScan_Dim.jpg

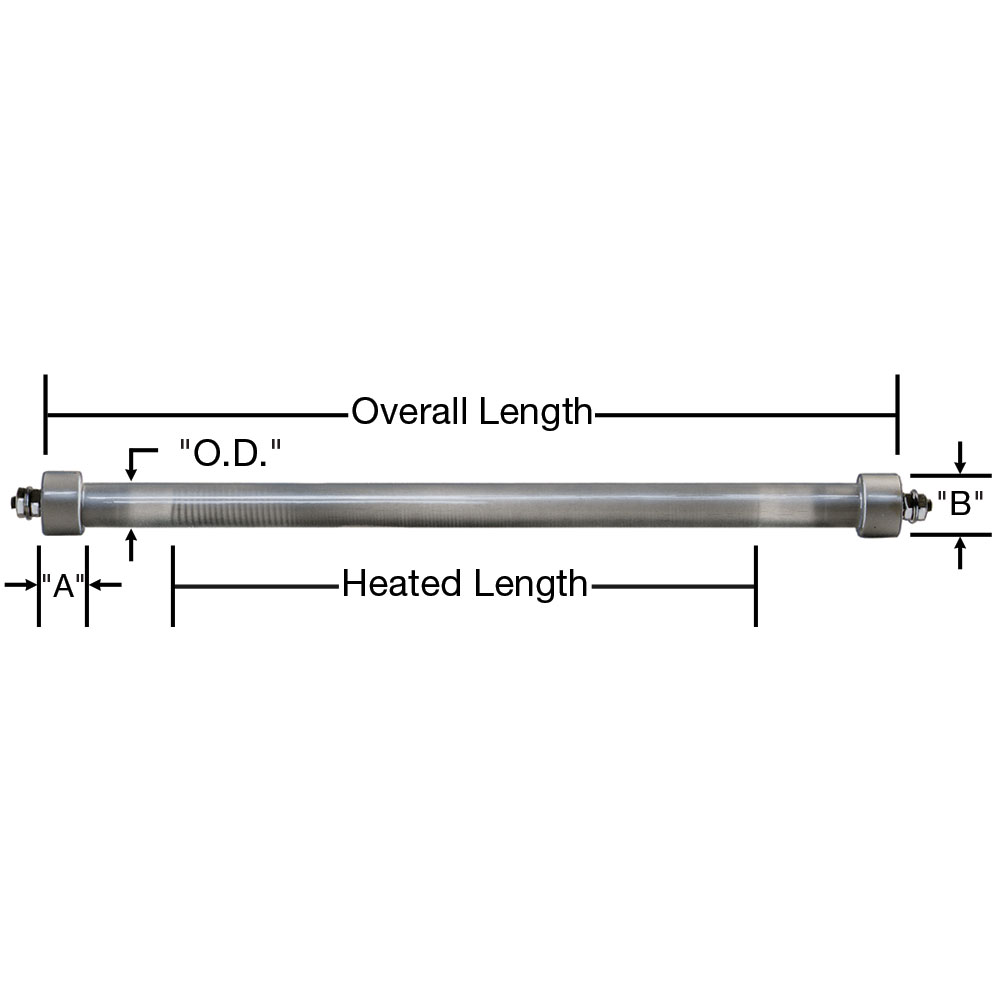

Type KRD Vitreous Silica Quartz Tube

To achieve best operating life, these quartz heaters shoudl be operated with surface watt densities in the 35-40 watts per square inch range, not exceeding the maximum power densities specified below.

/Tempco/Data-Assets/07-Infrared-Images/WebR666.jpg

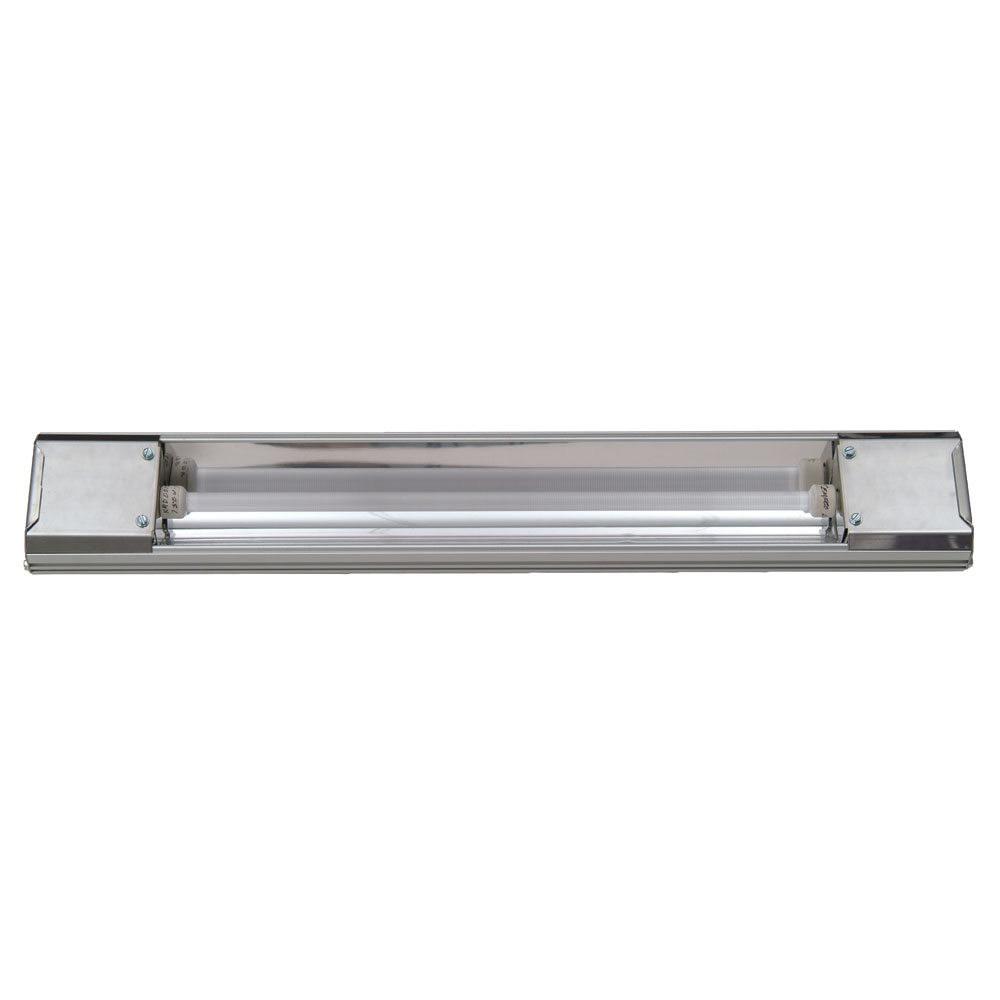

Type KRH Radiant Heaters in Linear Housing

Designed for use in applications that require rapid on/off response and fast heat-up and cooldown rates. These heater assemblies are designed to operate in the medium wavelength range of 4.0-2.4 microns (700 to 1715°F peak emitter temperatures).These Modular Housing assemblies utilize a .50 diameter translucent “milky white” vitreous quartz tube enclosing a high temperature resistance wire coil. The diffusion effect of the translucent quartz tube surface broadens the emitted infrared wavelength range obtained without objectionable glare due to low emissions in the visible spectrum. The units have either single or dual heaters mounted at the focal point of a polished aluminum reflector within the housing. These heater assemblies are available in a wide range of power densities.

/Tempco/Data-Assets/07-Infrared-Images/WebR809.jpg

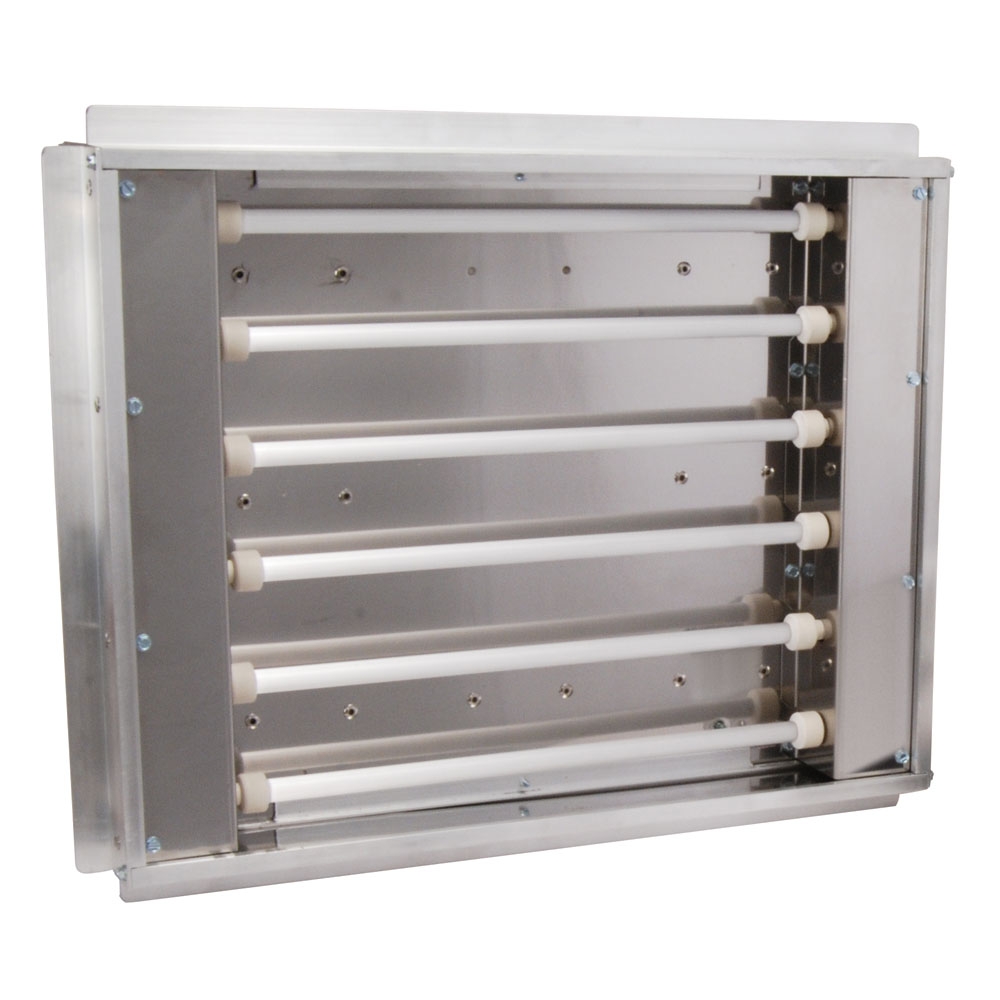

Type ARK Panel Arrays

Custom 4″ high Type ARK panels with 1/2″ diameter quartz elements are available. Tempco will design and build to your specifications. Consult us with your requirements.
