UMS ultrasonic sensors are particularly suitable for fill level monitoring of liquids, bulk solids and transparent objects. They reliably detect objects regardless of material, unit condition, color or transparency – as reflex sensors even at a distance of up to 6,000 mm.
Product Highlights of the UMS Ultrasonic Sensors:
UMS ultrasonic sensors impress with their outstanding versatility. With a wide range of operating modes, including synchronous or multiplex operation, the UMS sensor masters a wide range of challenges reliably and easily. Thanks to the integrated display, adjustments can be made quickly and intuitively directly on the sensor for easy adaptation to different requirements. The sensor also offers the option of carrying out further parameter settings via the IO-Link interface and transferring process data.
- IO-Link interface and rotatable M12 plug
- Waterproof with IP67 degree of protection
- Adjustable sound cone width
- Summary of switching states and process values
- Intuitive teaching at the touch of a button and display
Benefits for Process Automation:
Ultrasonic sensors from the UMS product family are characterized by excellent background suppression, long ranges and high resistance to interference influences. Paired with their smart operation, they open up a wide range of applications that meet the most varied usage conditions.
Wide Range of Functions and Applications:
- Working range as a reflex sensor up to 6,000 mm depending on the variant
- Supports multiplex or synchronous operation
- With digital and analog output

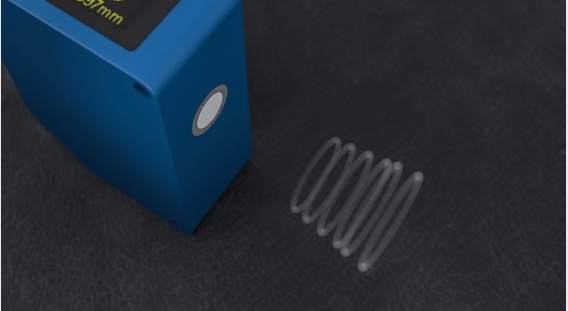

- Precise detection range thanks to differently adjustable sound beam widths
Intuitive Parametrization:

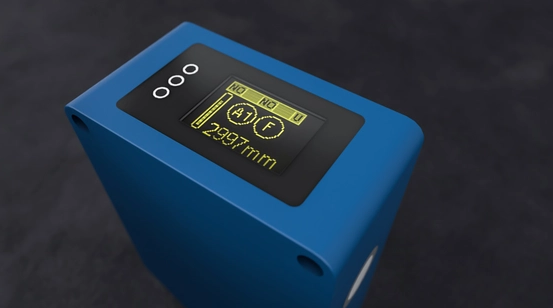

- Quick and easy adjustment directly on the display
- Configuration also possible via IO-Link
- Presence Check
- Fill Level Monitoring
- Sag Detection
- Stacking Height Monitoring
