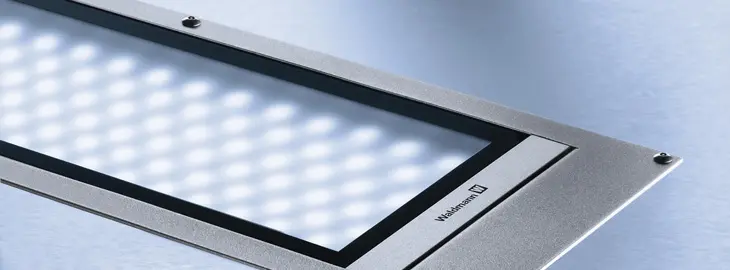

WALDMANN LED FIXTURES FOR MACHINE & EQUIPMENT LIGHTING – LUMATRIS SERIES
Waldmann Lumatris LED Machine Light Video
| Part No | Model | Length | Width | Light Distribution | Connection | Wattage | Voltage | IP Rating | Spec Sheet | IES |
|---|---|---|---|---|---|---|---|---|---|---|
| 113094000-00596722 | MSAL 24 S | 9.7″ | 3.7″ | Narrow | Side | 8W | 24V DC | IP68, IP69K |  |
 |
| 113094000-00596788 | MSAL 24 S | 9.7″ | 3.7″ | Narrow | Rear | 8W | 24V DC | IP68, IP69K | |
|
| 113094000-00596791 | MSAL 24 S | 9.7″ | 3.7″ | Wide | Side | 8W | 24V DC | IP68, IP69K | |
|
| 113094000-00596794 | MSAL 24 S | 9.7″ | 3.7″ | Wide | Rear | 8W | 24V DC | IP68, IP69K | |
|
| 113095000-00596761 | MSAL 48 S | 16.5″ | 3.7″ | Narrow | Side | 16W | 24V DC | IP68, IP69K | |
|
| 113095000-00596803 | MSAL 48 S | 16.5″ | 3.7″ | Narrow | Rear | 16W | 24V DC | IP68, IP69K | |
|
| 113095000-00596806 | MSAL 48 S | 16.5″ | 3.7″ | Wide | Side | 16W | 24V DC | IP68, IP69K | |
|
| 113095000-00596809 | MSAL 48 S | 16.5″ | 3.7″ | Wide | Rear | 16W | 24V DC | IP68, IP69K | |
|
| 113096000-00596764 | MSAL 72 S | 23.5″ | 3.7″ | Narrow | Side | 24W | 24V DC | IP68, IP69K | |
|
| 113096000-00596857 | MSAL 72 S | 23.5″ | 3.7″ | Narrow | Rear | 24W | 24V DC | IP68, IP69K | |
|
| 113096000-00596862 | MSAL 72 S | 23.5″ | 3.7″ | Wide | Side | 24W | 24V DC | IP68, IP69K | |
|
| 113096000-00596870 | MSAL 72 S | 23.5″ | 3.7″ | Wide | Rear | 24W | 24V DC | IP68, IP69K | |
|
| 113097000-00596767 | MSAL 96 S | 30.3″ | 3.7″ | Narrow | Side | 32W | 24V DC | IP68, IP69K | |
|
| 113097000-00596874 | MSAL 96 S | 30.3″ | 3.7″ | Narrow | Rear | 32W | 24V DC | IP68, IP69K | |
|
| 113097000-00596877 | MSAL 96 S | 30.3″ | 3.7″ | Wide | Side | 32W | 24V DC | IP68, IP69K | |
|
| 113097000-00596880 | MSAL 96 S | 30.3″ | 3.7″ | Wide | Rear | 32W | 24V DC | IP68, IP69K | |
|
| 112573001-00514271 | MSAL 90 S | 16.5″ | 6.7″ | Narrow | Side | 25W | 24V DC | IP68, IP69K | |
|
| 112573000-00499489 | MSAL 90 S | 16.5″ | 6.7″ | Narrow | Rear | 25W | 24V DC | IP68, IP69K | |
|
| 112573000-00608666 | MSAL 90 S | 16.5″ | 6.7″ | Wide | Side | 25W | 24V DC | IP68, IP69K | |
|
| 112573000-00608673 | MSAL 90 S | 16.5″ | 6.7″ | Wide | Rear | 25W | 24V DC | IP68, IP69K | |
|
| 112574001-00511140 | MSAL 180 S | 30.3″ | 6.7″ | Narrow | Side | 50W | 24V DC | IP68, IP69K | |
|
| 112574000-00499493 | MSAL 180 S | 30.3″ | 6.7″ | Narrow | Rear | 50W | 24V DC | IP68, IP69K | |
|
| 112574000-00608680 | MSAL 180 S | 30.3″ | 6.7″ | Wide | Side | 50W | 24V DC | IP68, IP69K | |
|
| 112574000-00608677 | MSAL 180 S | 30.3″ | 6.7″ | Wide | Rear | 50W | 24V DC | IP68, IP69K |
