Strong penetrating power

As the penetrating power is strong, its beam can pass through not only translucent containers (PFA tanks, etc.) but also opaque containers of shampoo bottles, etc., and the sensor can reliably detect the liquid inside.

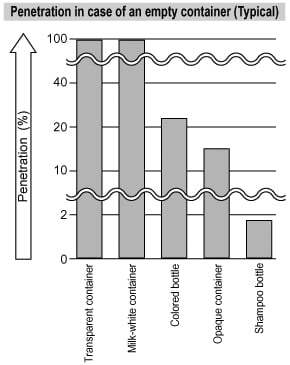

The graph above is merely a guideline. Penetrating power changes due to container material, thickness and color. We strongly recommend conducting verification tests prior to use.

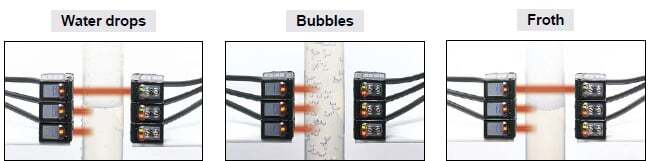

Not affected by drops, bubbles or froth

It is possible to set its sensitivity adjuster so that water drops, bubbles in the water, or froth on the water surface are not detected.

Adjacent sensor mounting possible

Several sensors can be mounted adjacently by fitting optional slit masks.
Further, they can detect the liquid level accurately.

Plug-in connector type is available

Plug-in connector type which enables connection / disconnection of the cable by one-touch is available. Anyone can easily replace the sensor in a minute.

Output operation selectable

Light-ON or Dark-ON operation can be selected.
The output operation can be changed easily.

IP67 protection

The sensor can be hosed down because of its IP67 construction and the non-corrosive stainless steel sensor mounting bracket.

Note: Take care that if it is exposed to water splashes during operation, it will detect the splashed water itself.
