Description

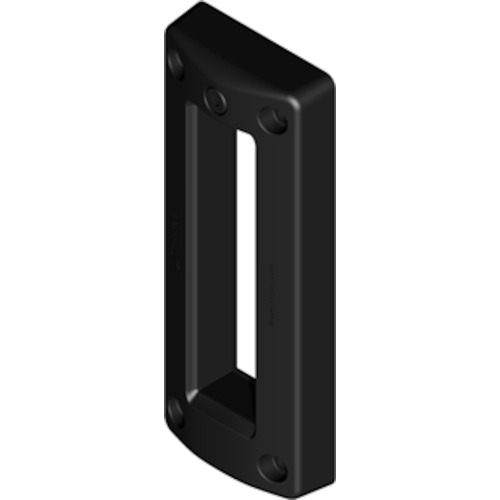

The Roxtec EzEntry™ frame simplifies cable sealing in cabinets and enclosures. The composite frame is made for single-sided installation.

To be used with corresponding Roxtec components to form a complete sealing solution Available in sizes for 4 to 32 cables
Integrated compression unit
Allows pre-terminated cables
Versions available for the FL 21 knock-out and multi-pin 24 connector knock-out
Available with stainless steel fasteners upon request to meet requirements in aggressive corrosive environments
Available in complete kits

Specifications

Component family Roxtec EzEntry™ frame
Material/group Composite
Frame openings
1
Packing space per opening (in)
1.575 x 6.299
External dimensions WxHxD (in)
3.543 x 8.976 x 1.339
Aperture dimensions WxH (in)
1.457 x 6.22
Weight (lbs)
0.97
Art. No EZ00016000000
