HTU430B-3000.X3/LT4-M12

$695.00

SKU: HTU430B3000X3LT4M12 / 50124273 Category:

Description

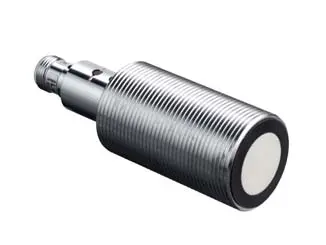

Ultrasonic sensor

Series 430B
Operating principle Diffuse reflection principle with background suppression
Contains 2x M30 mounting nut
Special version 2 independent switching outputs
Multiplex operation
Synchronous operation
Operating range 0.3 … 3 m
Operating range Guaranteed operating range
Opening angle 15 °
Direction of beam Front
Shape of sound lobe standard
Ultrasonic frequency 120 kHz
Repeatability 0.15 %
Reference value repeatability End value
Protective circuit Inductive protection
Polarity reversal protection
Short circuit protected
Supply voltage UB 15 … 30 V, DC
Residual ripple 0 … 10 %, From UB
Open-circuit current 0 … 50 mA
Switching hysteresis 25,000 µm
