$47.61

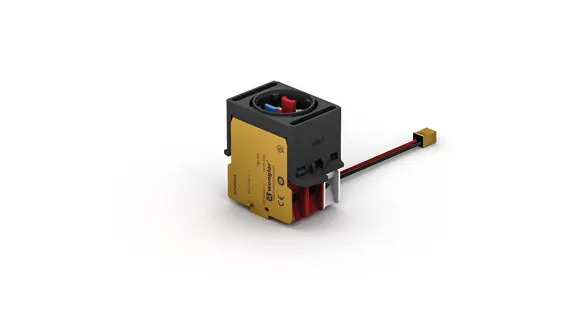

Emergency Stop Switch
Features at a Glance
Electrical Data |
|
|---|---|
| Temperature Range | -30 … 70 °C |
| Storage temperature | -50 … 85 °C |
| Protective Insulation, Rated Voltage | 250 V |
Mechanical Data |
|
|---|---|
| Contact material | AgNi |
| Service Life (Switching Cycle) | 20000 |
| Bounce time | < 10 ms |
| Connection | Screw-type connection |
| Clampable Wire Cross-Section | 2.5 mm² |
Laser Distance Sensor Triangulation Features at a Glance Highly precise measurement with a maximum linearity deviation of 0.05% Constant, surface-independent measured values Thermally stable measured values without any warm-up phase Industry 4.0 compatible thanks to Industrial Ethernet Optical Data Working Range 200 … 1,000 mm Measuring Range 800 mm Reproducibility maximum 100 µm Reproducibility: 1 Sigma 15 µm Linearity Deviation 375 µm Light … Continue reading PNBC108 →
Add to cart
Laser Distance Sensor Features at a Glance Smallest recognizable distance difference: 200 µm Spot diameter: 0,8 mm Optical Data Range 100 mm Setting Range 60 … 100 mm Switching Hysteresis < 200 µm Light Source Laser (red) Wavelength 660 nm Service Life (T = +25 °C) 100,000 h Laser Class (EN 60825-1) 2 Max. Ambient Light 10,000 Lux Light Spot Diameter 0.8 mm Focus Distance 110 mm
Add to cart
Laser Distance Sensor Features at a Glance Minimal switching hysteresis Switching point independent of material, color and brightness CMOS line array Highly accurate switching distance Optical Data Range 240 mm Setting Range 40 … 240 mm Switching Hysteresis < 0.5 % Light Source Laser (red) Wavelength 655 nm Service Life (T = +25 °C) 100,000 h Laser Class (EN 60825-1) 2 Max. Ambient Light 10,000 Lux Light … Continue reading CP25QXVT80 →
Add to cart
Laser Distance Sensor Triangulation Features at a Glance Measured value independent of material, color and brightness Analog output: 4…20 mA Graphical display for easy operation Wireless settings via Bluetooth Rugged aluminium housing Optical Data Working Range 30 … 80 mm Setting Range 30 … 80 mm Reproducibility maximum 13 µm Reproducibility: 1 Sigma 0.8 µm Linearity Deviation 40 µm Light Source Laser (red) Wavelength 655 nm Service … Continue reading P3PC011 →
Add to cart
