$368.00

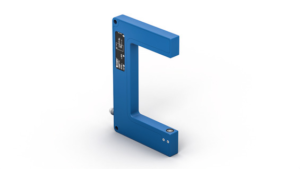

Fork Sensor
Features at a Glance
Optical Data |
|
|---|---|
| Fork Width | 80 mm |
| Smallest Recognizable Part | 40 µm |
| Smallest Detectable Gap | 50 µm |
| Switching Hysteresis | < 20 µm |
| Light Source | Laser (red) |
| Wavelength | 655 nm |
| Service Life (T = +25 °C) | 100,000 h |
| Laser Class (EN 60825-1) | 1 |
| Max. Ambient Light | 10,000 Lux |
| Light Spot Diameter | 0.6 mm |
| Repeat Accuracy | < 5 µm |
Laser Distance Sensor Features at a Glance 2 mutually independent switching outputs Graphical display for easy operation Switching output A1 as analog output switchable (0…10 V/4…20 mA) Temperature drift eliminable Optical Data Working Range 0.1 … 10.1 m Measuring Range 10 m Resolution 1 … 12 mm Linearity 0.5 % Linearity Deviation 50 mm Switching Hysteresis 3 … 20 mm Light Source Laser (red) Wavelength 660 nm Service … Continue reading Y1TA100QXT3 →
Add to cart
Laser Distance Sensor Features at a Glance Minimal switching hysteresis Switching point independent of material, color and brightness CMOS line array Highly accurate switching distance Optical Data Range 240 mm Setting Range 40 … 240 mm Switching Hysteresis < 0.5 % Light Source Laser (red) Wavelength 655 nm Service Life (T = +25 °C) 100,000 h Laser Class (EN 60825-1) 1 Max. Ambient Light 10,000 Lux Light … Continue reading OCP242X0135 →
Add to cart
Laser Distance Sensor Time of Flight Features at a Glance 2 mutually independent switching outputs Wide working range and precise detection thanks to DS technology No interactive influence Intuitive operating concept Large light spot Optical Data Working Range 0 … 5,000 mm Setting Range 50 … 5,000 mm Reproducibility maximum 3 mm* Linearity Deviation 10 mm* Switching Hysteresis < 15 mm Light Source Laser (red) … Continue reading P1PY131 →
Add to cart
Laser Distance Sensor Triangulation Features at a Glance Analog output: 4…20 mA Wireless settings via Bluetooth Graphical display for easy operation Measured value independent of material, color and brightness Rugged aluminium housing Optical Data Working Range 60 … 660 mm Setting Range 60 … 660 mm Reproducibility maximum 250 µm Reproducibility: 1 Sigma 25 µm Linearity Deviation 900 µm Light Source Laser (blue) Wavelength 405 nm Service … Continue reading P3PC341 →
Add to cart
