Description

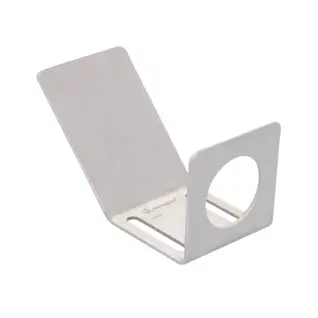

Baffle Plate
Features at a Glance
- For M18 × 1
- Focussing the ultrasonic cone
- Deflection about 90°
Mechanical Data |
|
|---|---|
| Material | Stainless Steel |
| Deflection about 90° | yes |
| Focusing the sonic cone | yes |
General Data |
|
|---|---|
| Packaging unit | 1 Piece |
Z0022
$46.23
