Description

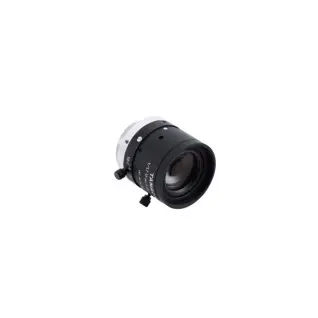

High-Resolution Lens
Features at a Glance
- Fixed focal length lens with C mount threaded connection
- For image chips with small pixel sizes
- Adjustable aperture and focus
- Resistant to vibrations and shock
Optical Data |
|
|---|---|
| Focal distance | 16 mm |
| Maximum sensor size | 1/1,7 |
| Minimum pixel size | 2.4 µm |
| Wavelength spectrum | Visible light |
Mechanical Data |
|
|---|---|
| Lens thread | C-Mount |
| Aperture | arrestable adjustable |
| Setting range aperture | F 2,4…16 |
| Minimum object distance | 100 mm |
| Filter Screw Size | M27 × 0,5 mm |
| Temperature Range | -20 … 60 °C |
General Data |
|
|---|---|
| Packaging unit | 1 Piece |
| Weight | 40 g |
