$244.95

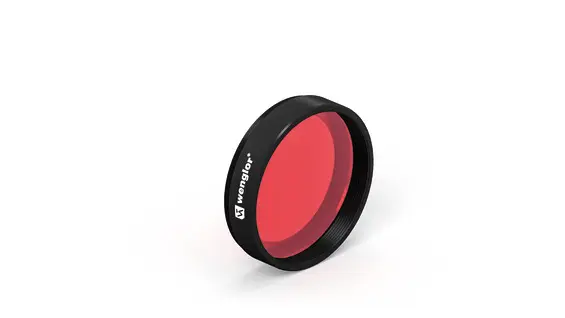

Optical Data |
|
|---|---|
| Usable wavelength range | 615 … 645 nm |
| Maximum transmission | ≥ 90 % |
| Half-value width FWHM | 60 nm |
| Tolerance | ± 10 nm |
Mechanical Data |
|
|---|---|
| Mounting type, device-side | can be screwed |
| Filter Screw Size | M27 × 0,5 mm |
| Temperature Range | -40 … 300 °C |
| Surface quality | 40/20 |
General Data |
|
|---|---|
| Packaging unit | 1 Piece |
Laser Distance Sensor Triangulation Features at a Glance Switching point independent of material, color and brightness 2 mutually independent switching outputs Integrated jump detection Intuitive operating concept Rugged aluminium housing Optical Data Working Range 60 … 660 mm Setting Range 60 … 660 mm Reproducibility maximum 550 µm Reproducibility: 1 Sigma 30 µm Linearity Deviation 900 µm Switching Hysteresis < 0.5 % Light Source Laser (red) Wavelength … Continue reading P3PC301 →
Add to cart
Laser Distance Sensor Triangulation Features at a Glance Analog output: 4…20 mA Wireless settings via Bluetooth Graphical display for easy operation Measured value independent of material, color and brightness Rugged aluminium housing Optical Data Working Range 60 … 660 mm Setting Range 60 … 660 mm Reproducibility maximum 250 µm Reproducibility: 1 Sigma 25 µm Linearity Deviation 900 µm Light Source Laser (blue) Wavelength 405 nm Service … Continue reading P3PC341 →
Add to cart
Laser Distance Sensor Features at a Glance 2 mutually independent switching outputs Graphical display for easy operation Switching output A1 as analog output switchable (0…10 V/4…20 mA) Temperature drift eliminable Optical Data Working Range 0.1 … 10.1 m Measuring Range 10 m Resolution 1 … 12 mm Linearity 0.5 % Linearity Deviation 50 mm Switching Hysteresis 3 … 20 mm Light Source Laser (red) Wavelength 660 nm Service … Continue reading Y1TA100QXT3 →
Add to cart
Laser Distance Sensor Features at a Glance Smallest recognizable distance difference: 200 µm Spot diameter: 0,8 mm Optical Data Range 100 mm Setting Range 60 … 100 mm Switching Hysteresis < 200 µm Light Source Laser (red) Wavelength 660 nm Service Life (T = +25 °C) 100,000 h Laser Class (EN 60825-1) 2 Max. Ambient Light 10,000 Lux Light Spot Diameter 0.8 mm Focus Distance 110 mm
Add to cart
