Tempco’s variety of Band Heaters helps you find the right temperature for your application. Choose from their selection of band heaters below to learn more about each and find the perfect fit.

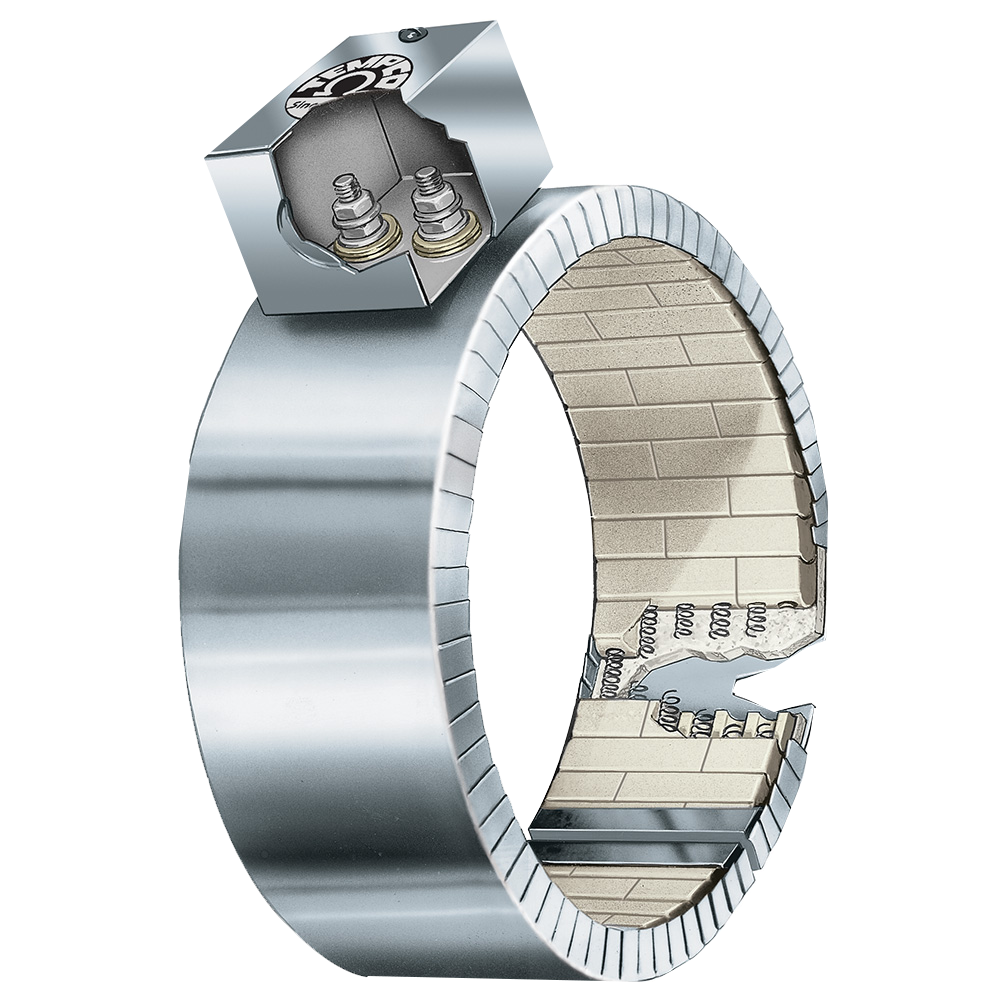

Ceramic Bands:
These band heaters are constructed using helically wound resistance coils made from nickel-chrome strung through specially designed ceramic insulating bricks.
Ceramic Bands conserve energy and improve operation efficiency.
Typical Applications:
- Plastic Injection Molding Machines
- Plastic Extruders

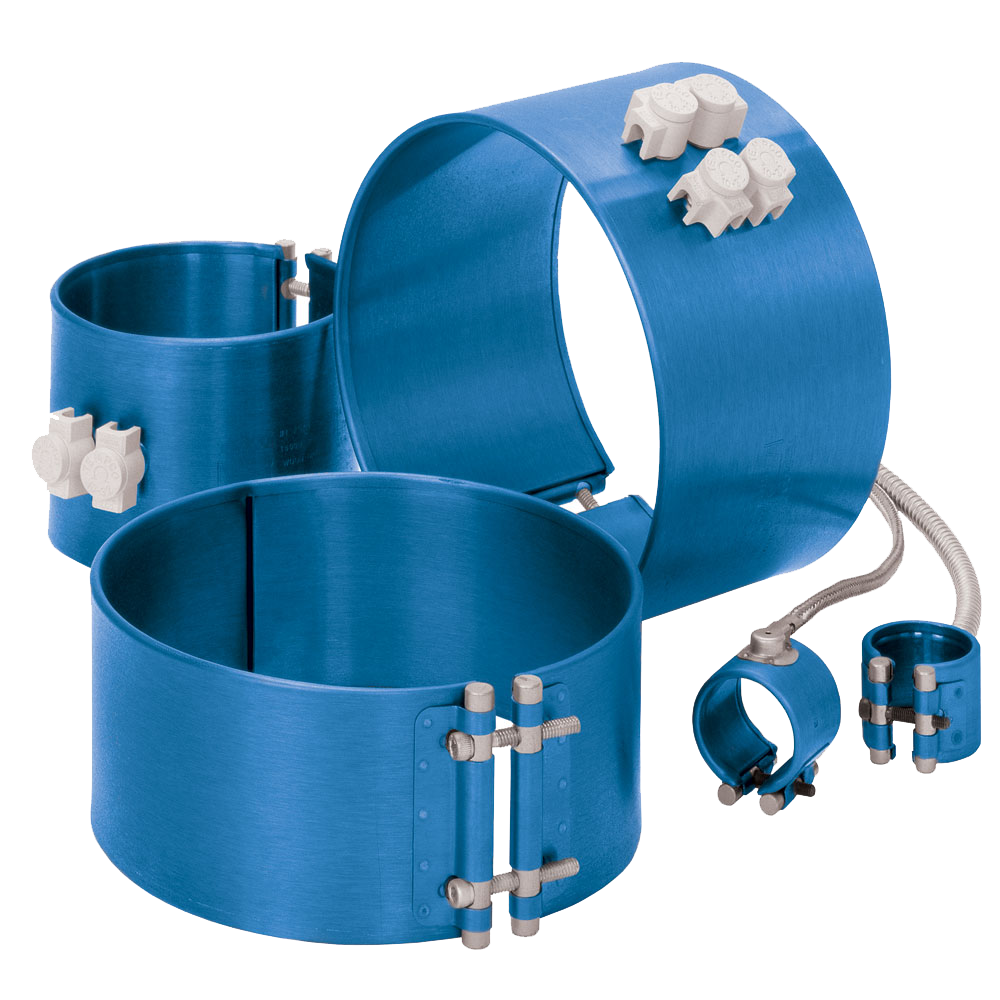

MI-Plus Bands:
Specially formulated mineral insulated tape provides excellent thermal conductivity and dielectric strength used to insulate the nickel chrome resistance wire from the stainless steel sheath.
MI-Plus Bands have unbreakable power screw terminals and unique igloo ceramic covers.
Typical Applications:
- Injection Molding Nozzles
- Sensors of Air Pollution

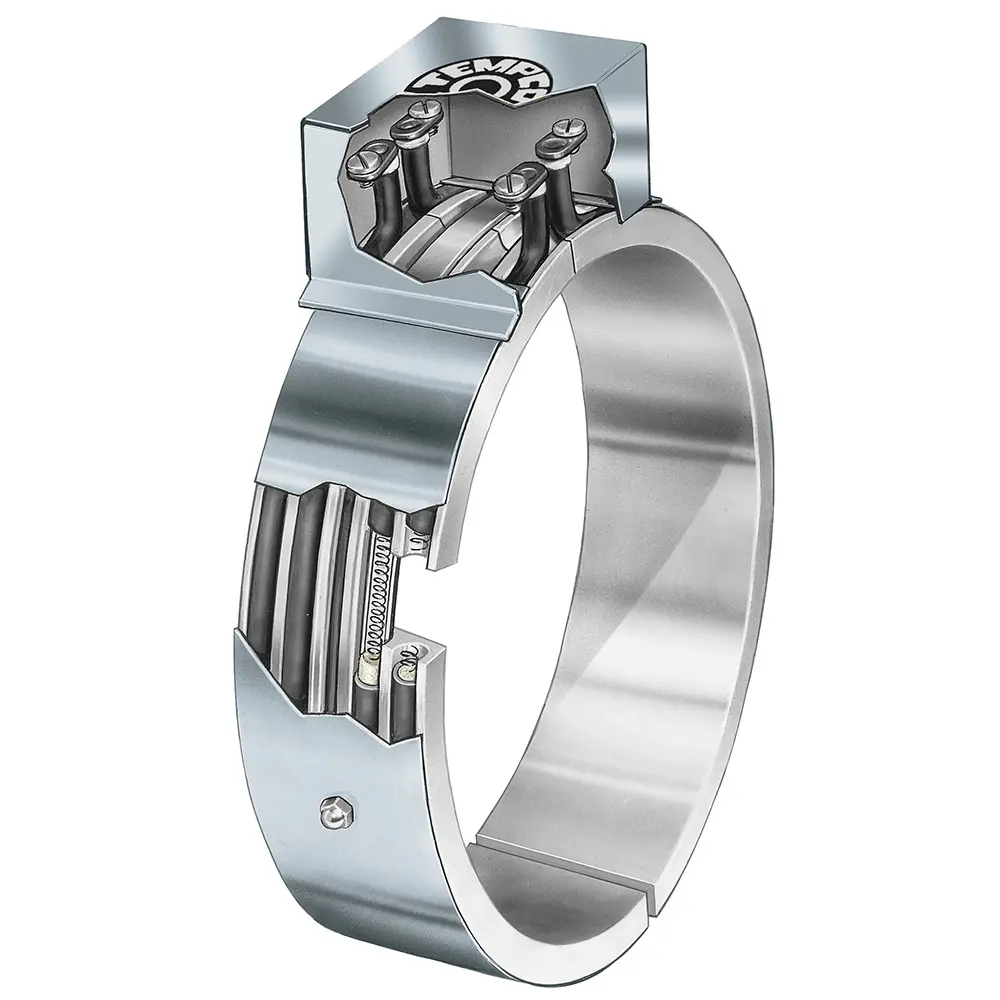

Maxiband Heaters:
Low mass construction and high thermal conductivity of aluminum provide extremely uniform surface temperatures and rapid cooling cycles.
Maxiband Heaters have a durable design and quick installation.
Typical Applications:
- Blow Molding Equipment
- Plastic Injection Molding Machines

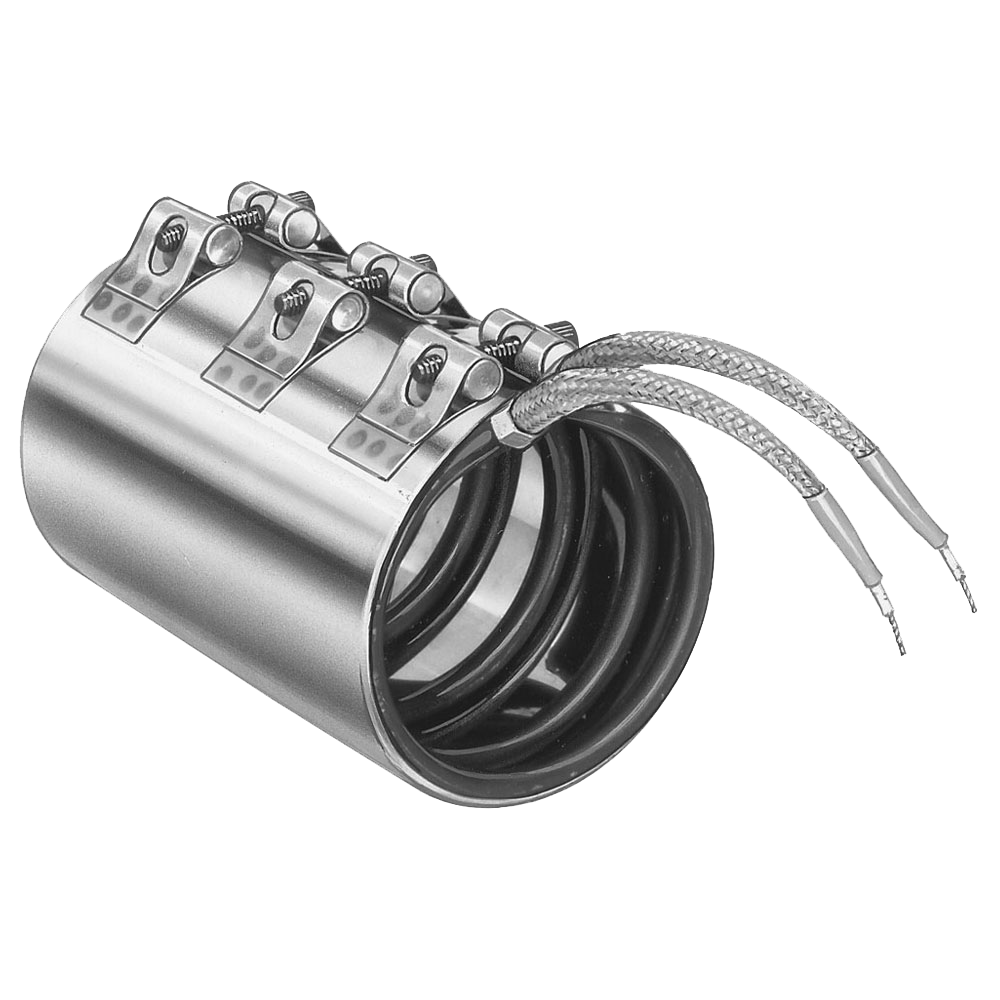

Tubular Nozzle Bands:
Incoloy® 840 sheath tubular heating element is used as the heat source. It is formed to the specified inside diameter to produce a snug, slip-on fit.
Tubular Nozzle Heaters are contamination-proof and perform in adverse conditions.
Typical Applications:
- Plastic Injection Molding Machines
- Processing Teflon® & Other Resins

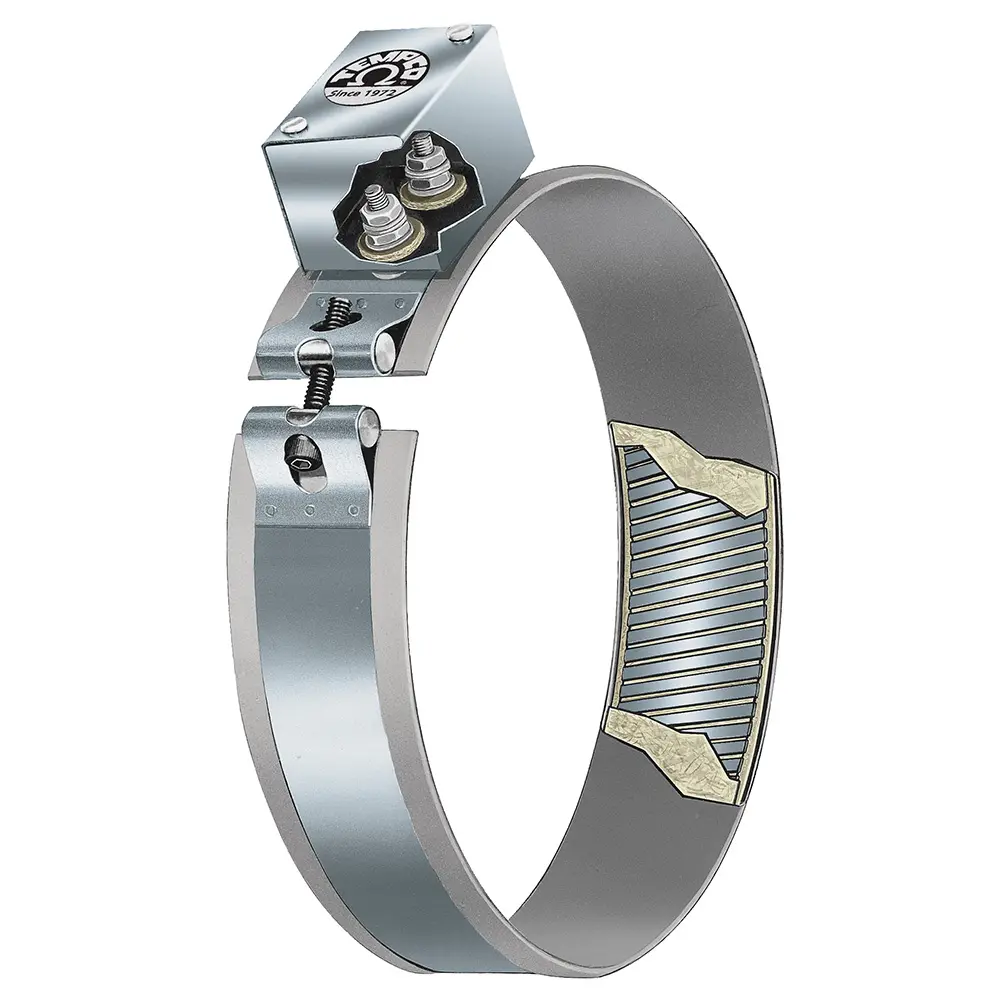

Durabands:
Mica insulated heaters with a Low Thermal Expansion Alloy outer sheath used as a uniquely designed Built-In Strap.
Durabands are versatile and economical.
Typical Applications:
- Food & Candy Extruders
- Vending Machines

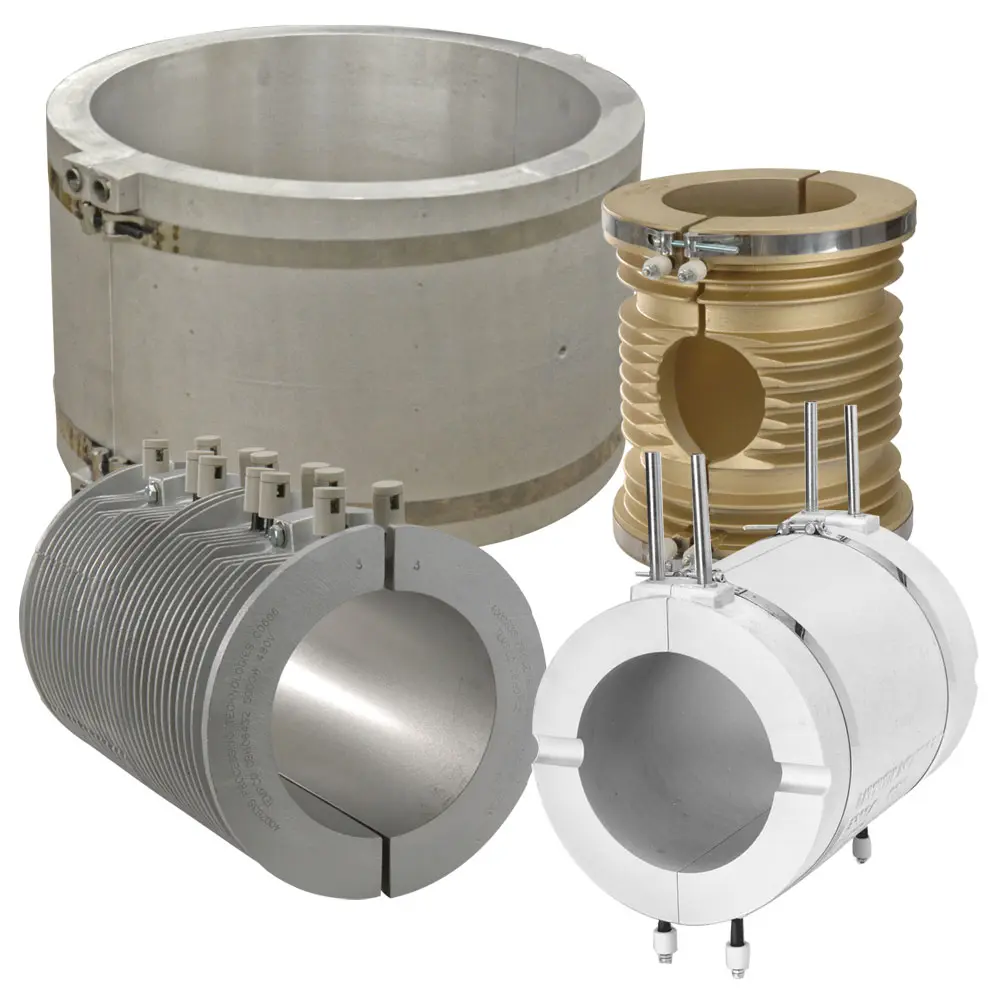

Cast-In Bands:
Cast-In Band Heaters are manufactured in aluminum alloys providing very good thermal conductive properties, these can be made with Liquid-cooled or Air-cooled cooling methods.
Cast-In Bands have superior heat transfer and uniform heating & cooling.
Typical Applications:
- Extruders
- Packaging
