Resistance Temperature Detectors (RTD’s) are temperature sensing devices consisting of a wire coil or deposited film of pure metal, usually platinum. The element’s resistance increases with temperature in a known and repeatable manner.
RTD’s exhibit excellent accuracy over a wide temperature range, –200° to 650°C (–328° to 1202°F).

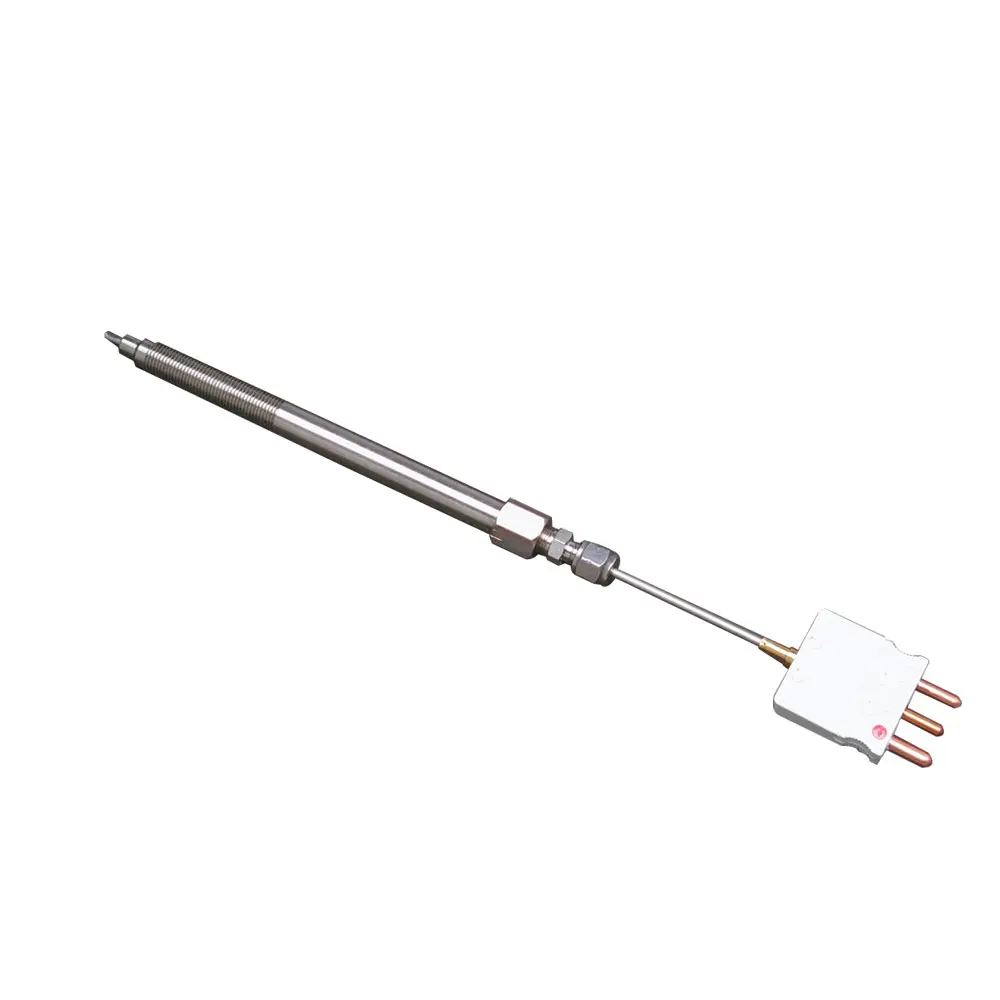

Melt Bolt RTD’s:
- 3/16″ diameter Probe
- 100 ohm Class B element per IEC 751
- 3-wire circuit
- Can be installed wherever standard melt thermocouples are used
- Operating temp. 392°F (200°C), 900°F (482°C) available
- Available in 3″ and 6″ bolt designs
- 3 Styles Available: Style RT1 – Adjustable Tip, Style RT2 – Rigid Plug Mount Fixed Tip, and Style RT3 – Flexible Mounted Plug.
- Bolts and Probes are 300 series stainless steel

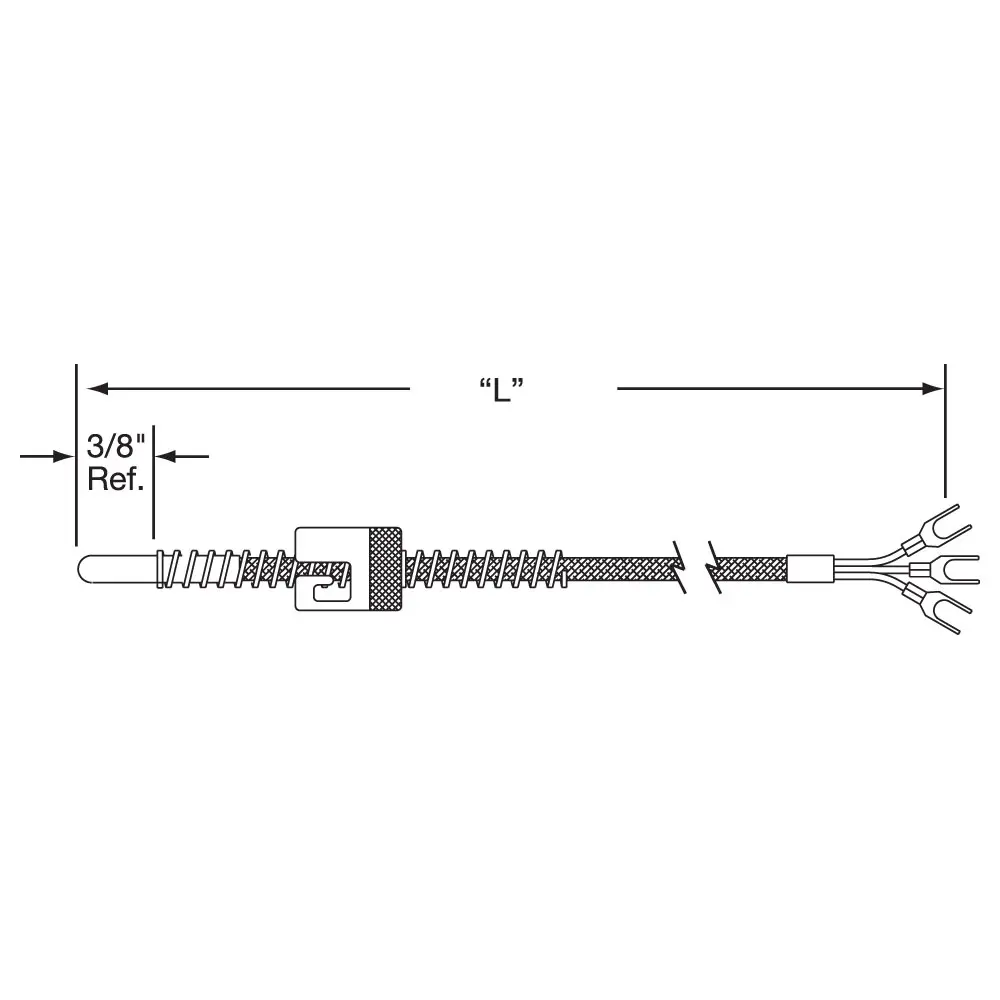

Adjustable Bayonet Style RTD’s:
- 3/16″ diameter stainless steel probe
- Operating temp. 392°F (200°C); 900°F (482°C) available
- 3-wire circuit
- 100 ohms Class B element per IEC 751
- Can be installed wherever existing thermocouples of similar design are used
- Available in Adjustable Spring (forms to any angle) and Rigid 90° Bend (3/16″ diameter stainless steel probe)
